PRICING:
4X4 $3495
5X5 $3595
4X8 $3595
5X10 $3695
...
.
INCLUDES:

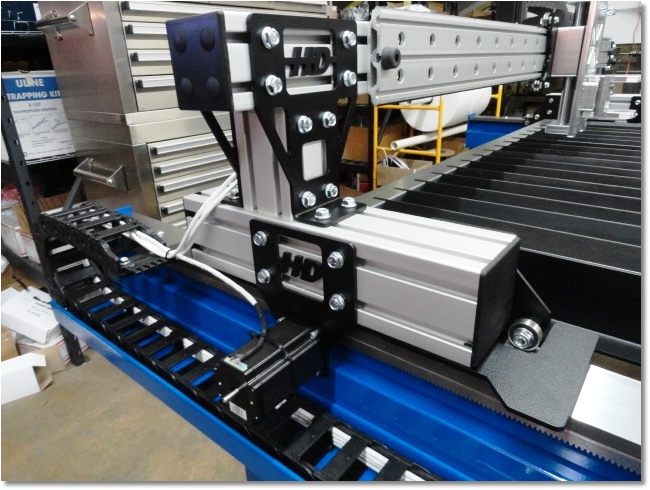

CABLE TRACK AND GEAR RACK
ALL COMPONENTS LESS FRAME AND RAILS
REQUIRES CUSTOMER TO ASSEMBLE
THIS KIT IS DIRECT DRIVE UNLESS BELT
REDUCTION OPTION IS PURCHASED
................
OPTIONAL:
(3) BELT REDUCTION UNITS +$500 ...
SHIPPING WEIGHT 100-150 LBS AND SHIPS IN MULTIPLE BOXES. .. ..... ..
NOTE: The cable track support for the long axis is integrated into the frame weldment. See prints for details.
HYPERTHERM 105 IS THE LARGEST COMPATIBLE PLASMA CUTTER
ONLY COMPATIBLE WITH NEMA 23 620 IN-OZ STEPPER MOTORS

ONLINE DOCUMENTATION ONLY. NO HARD COPIES PROVIDED
NOTE: THIS GANTRY IS SHIPPED IN PIECES AND THE CUSTOMER MUST ASSEMBLE.
IF YOU ARE NOT A DIY PERSON, THIS KIT IS NOT FOR YOU.
(NO FRAME OR COLD ROLLED STEEL RAILS INCLUDED WITH THE GANTRY KIT)
Precision Plasma LLC - all rights reserved 2016
NOTE: THE BELT REDUCTION UPGRADE IS +$300 AND DOES NOT INCLUDE THE
DIRECT DRIVE COMPONENTS. TO REPLACE THE DIRECT DRIVE WITH BELT
REDUCTION IN THE FIELD REQUIRES A $700 RETROFIT KIT.

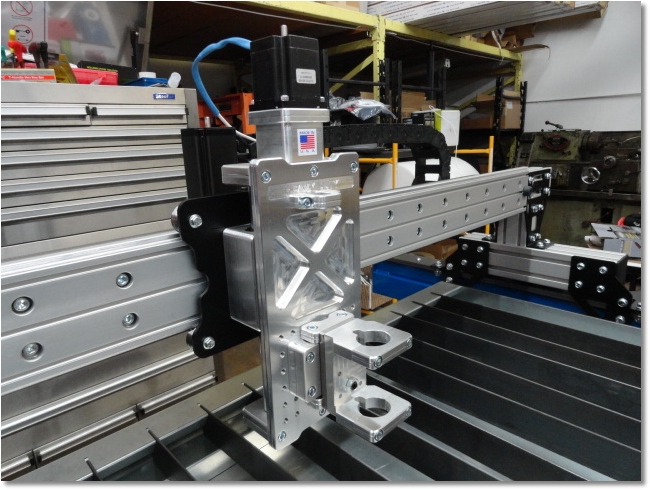

THE GANTRY KIT PRICING ABOVE IS WITH A VELOX Z AXIS AND MAGNETIC
BREAKAWAY MACHINE TORCH MOUNT. SEE Z AXIS PAGE FOR OPTIONS
.. ...
BRACKETS ARE BLACK HAMMERTONE EPOXY POWDERCOATED ON HD MODEL
BELT REDUCTION RECOMMENDED FOR HYPERTHERM 85 OR FOR HEAVY ROUTING. ..... ...
SEE Z AXIS PAGE FOR Z AXIS OPTIONS ...
SHIPPING COST IN CONTINENTAL US IS $100 ..... ...
The direct drive mounts allow for the gear to be attached directly to the motor shaft.
The gear has a .65 pitch diameter which allows for a resolution of .001" throughout
the cutting speeds. Each motor produces 112 pounds of force with this configuration.

...
