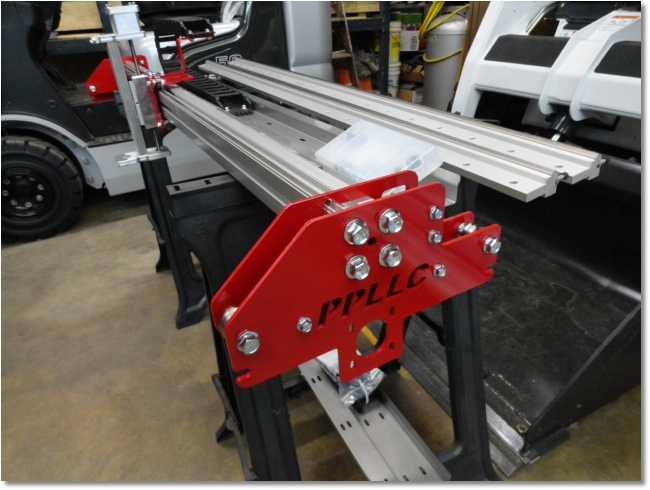

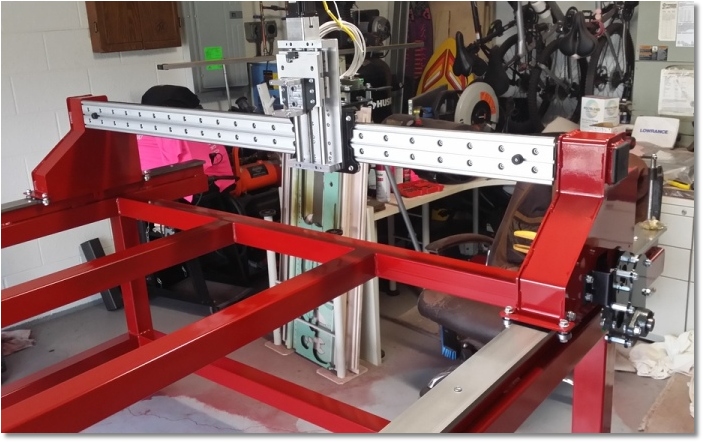

Precision Plasma LLC gantry kits include a Velox Z axis and magnetic breakaway
machine torch mount in the base price. Customers can choose to upgrade to our
ballscrew Z axis and magnetic breakaway machine torch mount for +$300.
... ... ... ..

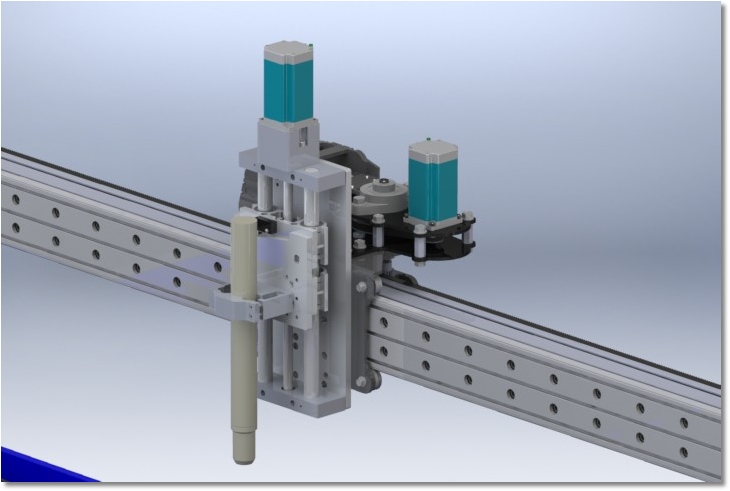

PPLLC ballscrew Z axis and floating magnetic breakaway machine torch mount upgrade +$300 ..
Specifications:
16mm diameter 5mm pitch ball screw with screw shielded from the torch.
Float and limit switch incorporated into the torch mount
Maximum speed 150ipm with a 620 in-oz motor and 300ipm with 300 in-oz motor
Options:
2 HP router mount (3.5" diameter) $100
300 in-oz stepper motor with 15' motor lead $50 (no other lengths available)
.... ... ... ... ...

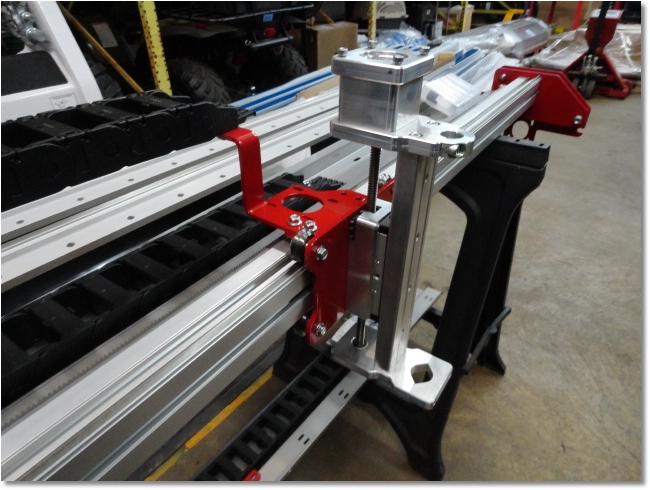

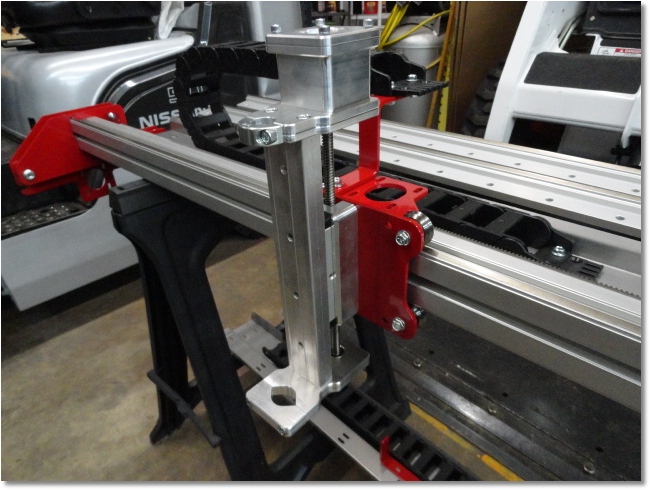

Velox CNC Z axis with float and limit switch (Included in base price of every gantry kit)
1.375" magnetic breakaway mount for Hypertherm 45/65/85/105
......
Specifications:
1/2" diameter 5TPI lead screw with delrin nut.
Screw exposed to the plasma cutting.
Float and limit switch incorporated into main Z axis. (must lock out float for routing)
Maximum speed 120ipm with a 620 in-oz motor. (maximum 600 rpm for delrin nut)
... ... ....
